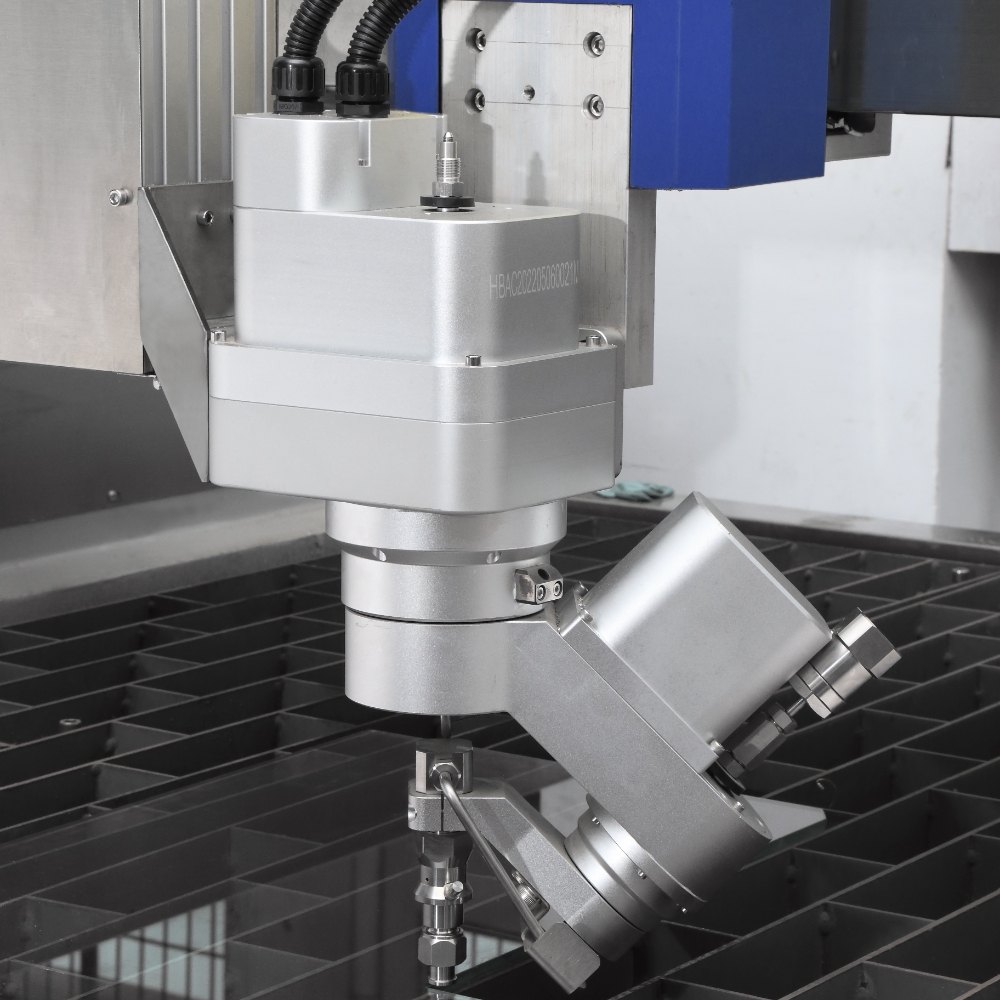

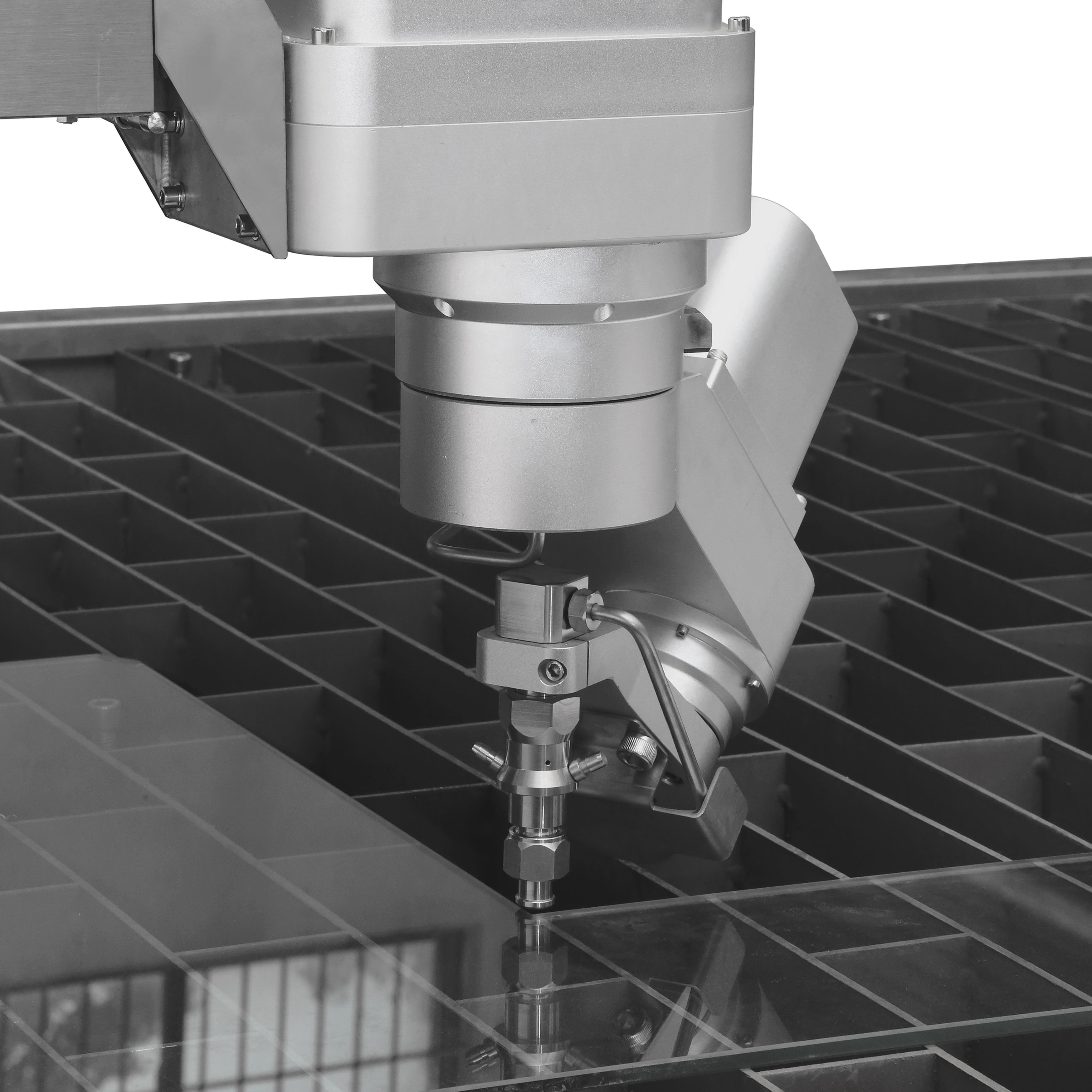

The operation principle of the Five-axis Rotary Cutting Head is that the cuttinghead can swing in any direction by adding two rotating shafts which are therotary axis (A axis) and the deflection axis (B axis)to the original three-axis plat-form. The slope model pattern set and real-time calculation of the cutting trackare used in advance in the NC system. The system will make calculation accord-ing to the material and thickness of the cut workpiece. The cutter head isconstantly swung in the process of cutting and completely controlled by the in-telligent system. With human-computer interaction technology, our waterjet iscapable to complete with the ability of three-dimensional continuous interpo-lation, which can make the real three-dimensional dynamic cutting. Our water-jet can be widely used with cutting of all kinds of workpiece into perfect slope.It can be used not only to correct the cutting slope, but also to cut off the work-piece with a certain slope (such as the groove of welded parts). It also has thefunctions of machining cone, bevel gear,uniform rotating surface andexpanding the application field of water cutting machine

The cutting head can be cut at any angle in the range of +10 with the five-axiswaterjet, and it has a superior performance in the process of processingmarble, ceramic tile and other materials. When the cutting head is controlled at0-4 , the splicing of the two cutting pieces can achieve the effect that there is nogap in the upper surface and a gap in the lower surface. This saves the manualsecondary grinding process, in order to improve work efficiency, reduce pro-cessing costs, improve the environment, and then create dust-free mosaic, im-prove the quality of mosaic, achieve perfect technology! Also in the use of cut-ting glass and metal materials, the effect is remarkable. When working, it is nolonger dependent on reducing cutting speed to realize more vertical process-ing, and the ideal effect can be achieved without changing the processingspeed.
